CARBO

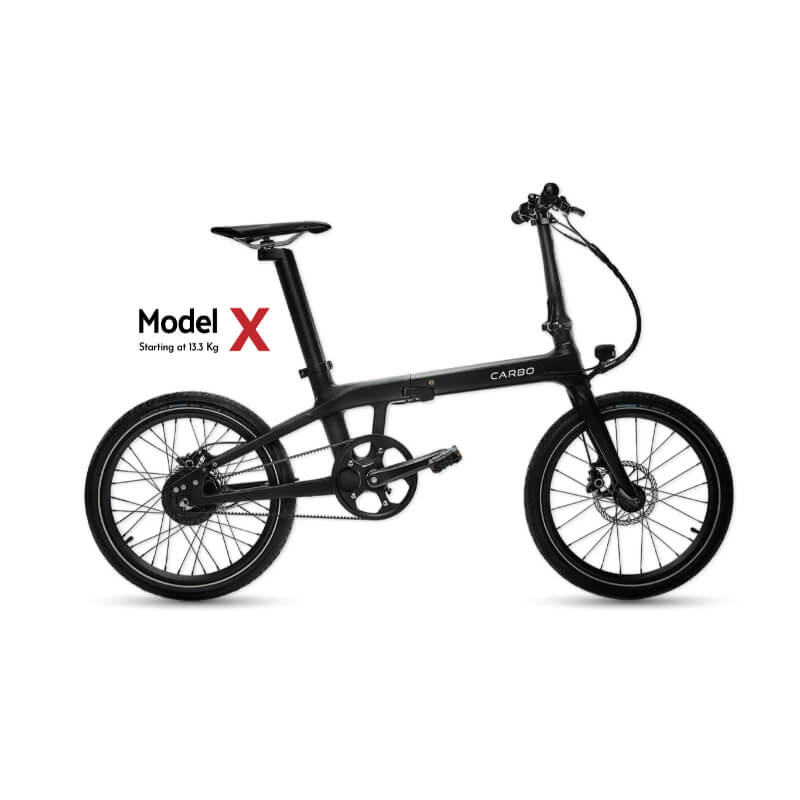

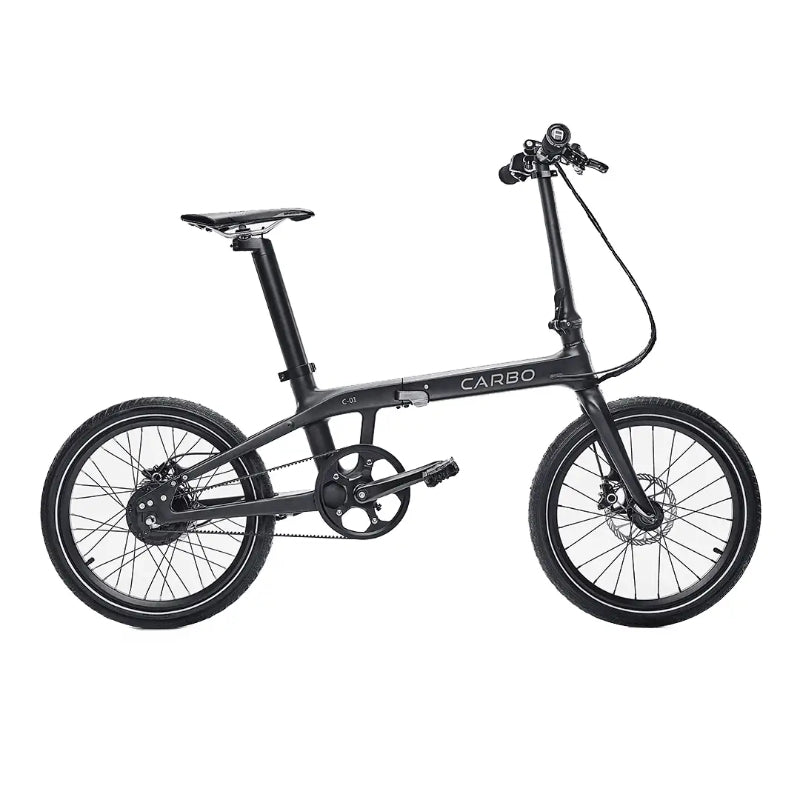

CARBO Model X Electric Bike

$3,642.99 CAD

Sale Sold out

Shipping calculated at checkout.

CARBO MODEL X is a folding e-bike built for mixed transit, apartment storage, and compact commuting. It combines Up to 32km/h top speed, Up to 30-55 km of assistance depending on the level of assist range, and 250W / 350W / 250W power.

Clean and silent ride ! Key features include a 10.05-65 km range / 6.7Ah-40 km range battery, Tektro HD-E350 Hydraulic Disc braking, and 20" x 2.0" tires. Available through ProMechBC with local Vancouver support, pickup, and post-purchase guidance.

Need financing? Get approved in Minutes!

Or choose RBC PayPlan at checkout as an alternative payment option and apply in minutes.

Motor 250W 350W

Battery 6.7Ah-40 km range 10.05-65 km range

Throttle No throttle Add Throttle

Assembled, tuned & safety-checked before pickup

1-year local warranty · in-house service team

Free local pickup in Vancouver, or shipping across BC

Free installation: Ask us for FREE installation when you pickup your purchased item

Shipping & Returns

In-store pickup available. Local support and e-bike service guidance are available through ProMechBC. Returns and exchanges are subject to store policy, product condition, and eligibility.

Fit & Sizing

Best for riders who want easier storage, transport, and flexibility for mixed-transit or apartment living.

View full details

250W / 350W / 250W Motor power

Up to 30-55 km of assistance depending on the level of assist Range per charge

Up to 32km/h Top speed

Vancouver workshop Free local pickup — 1199 Grant St.

Why riders choose the CARBO Model X

What makes it a folding e-bike.

Every figure below is labelled with where it comes from, so a manufacturer’s claim never reads as a measurement.

01 Power

250W / 350W, geared for gradient

250W / 350W. Watts set the ceiling; what you feel on a grade is how much pulling power is available low in the range, where a climb from a standstill actually happens.

Torque is what you feel; watts are what the marketing quotes. A motor with useful pulling power low in its range gets you moving from a standstill on a gradient — at a light, on a driveway apron, halfway up a climb you had to stop on. Those are the moments that decide whether a bike gets ridden or parked.

32 km/hAssisted to

Any climbing claim assumes a rider putting in their share. A throttle-only ascent drains the pack far faster than the range figure suggests.

250W / 350W, geared for gradient — CARBO Model X Electric Bike — 250W / 350W

02 Between charges

Up to 55 km claimed, and what that means

Up to 55 km claimed, 10.05-65 km range or 6.7Ah-40 km range. Charging takes 3.5 hr, and that is the figure that actually shapes your week — a pack you top up overnight without thinking about it beats a bigger one you have to plan around.

The number worth knowing is not how far it goes on a perfect day, but how far it still goes in February with a headwind and a cold pack. Batteries lose capacity in the cold and regain it when they warm; a pack with genuine headroom absorbs that, and one bought exactly to your commute length does not.

55 kmClaimed range
3.5 hrCharge time

Up to 55 km is the manufacturer's figure, measured on flat ground, in warm weather, with a light rider holding a steady low speed. Vancouver hills, winter temperatures and stop-start traffic all cost you range. We have not yet run our own road test on this one; when we do, the tested figure goes in the spec table beside the claim.

Up to 55 km claimed, and what that means — CARBO Model X Electric Bike — Up to 55 km

03 Control

Null, and why it matters

Tektro HD-E350 Hydraulic Disc, 20" x 2.0" tyres. Stopping distance is set by the contact patch as much as by the caliper: hardware can only ask for as much grip as the tyre has to give, which is why both are quoted here rather than just the one that sounds impressive.

Stopping distance is set by the tyre as much as by the caliper. The best brakes in the world cannot exceed the grip available, which is why contact patch, compound and pressure matter as much on a wet Vancouver morning as the hardware clamping the rotor.

13.3 kgWeight

BC requires a standard e-bike to stop from 32 km/h within 9 m on clean, level pavement. That is a dry-surface test — assume noticeably longer in Vancouver rain, and leave the gap to prove it.

Null, and why it matters — CARBO Model X Electric Bike — Tektro HD-E350 Hydraulic Disc

04 Fit

Toray Premium Carbon frame, and what it means

Toray Premium Carbon frame. Fit decides whether a bike is still being ridden in month three, and it is the one specification a photograph cannot tell you — reach, standover and saddle height interact, and two riders of the same height with different inseams want genuinely different setups. It weighs 13.3 kg, which is worth knowing before you commit if it has to come up a flight of stairs or onto a bus rack at the end of the ride.

Fit is the specification that decides whether a bike gets ridden after the first month, and it is the one that cannot be judged from a photograph. Reach, standover and saddle height interact — two riders of the same height with different inseams want genuinely different setups, and the adjustment range is what lets a bike belong to you rather than merely fit you.

13.3 kgWeight

Height charts assume average proportions. Two riders at the same height with different inseams will want different setups, so treat any published range as a starting point and expect to move the saddle and bars.

Toray Premium Carbon frame, and what it means — CARBO Model X Electric Bike — Toray Premium Carbon

05 Pedalling

Null

Transmission: Carbon belt drive / Gear Ratio: 75/22T, Throttle: Add Throttle / No throttle. Gearing decides what the motor is asked to do: the right gear on a climb keeps you spinning and keeps the drive unit cool and efficient, and the wrong one grinds through your knees and your range at the same time. Assistance runs to 32 km/h; past that the motor stops helping and the drivetrain is doing all of it, which is exactly when the spread of gears starts to matter.

Gearing decides what the motor is asked to do. The right gear on a climb keeps you spinning and keeps the drive unit in its efficient band, where it runs cooler and draws less; the wrong one grinds through both your knees and your range. A usable spread of gears is worth more than an extra sprocket you never select.

32 km/hAssisted to

Pedal-assist levels are a controller setting, not a measurement. What one brand tunes into its middle level another spreads across two, so treat the count as a range of options rather than as a spec you can compare across bikes.

Null — CARBO Model X Electric Bike — Throttle: Add Throttle / No throttle

A Unique Bike For A Unique Ride
CARBO X

Perfect for the urban user. A clean ride powered by a belt drive motor. .As powerful as e-bikes twice the weight, Model X is designed to be your perfect urban commuter. Equipped with plenty of features, Model X is on of the best quality price folding e-bike on the market.

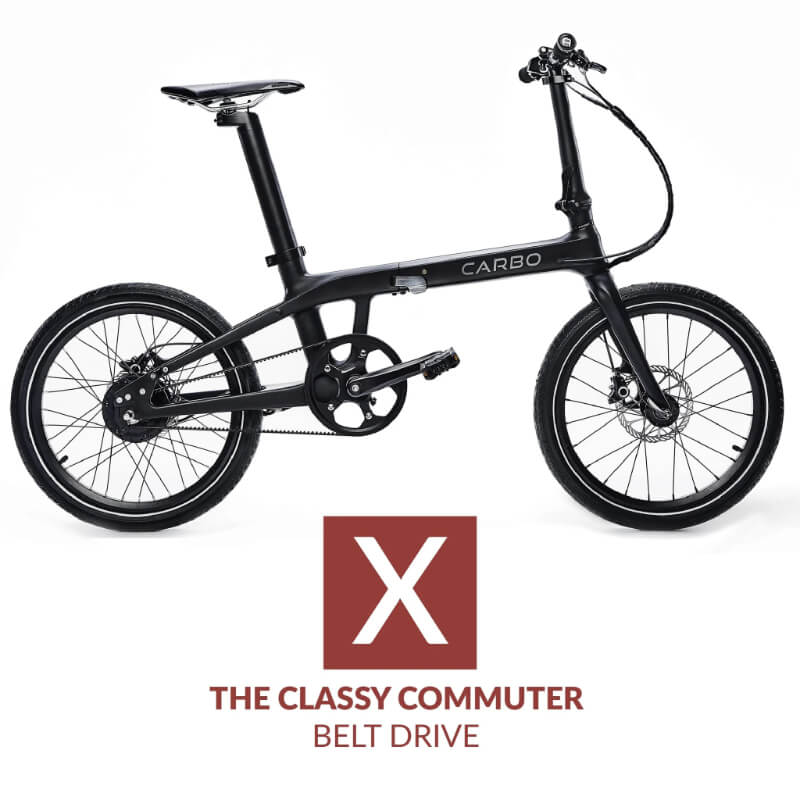

CARBO X The Classy Commuter, Smooth, Quiet and Durable

Dimensions

Carbon Fiber Frame

Aerospatial grade Japanese Torray Mesh, the carbon fibre frame is manufactured with the latest technology resulting in an ultra light and solid frame.

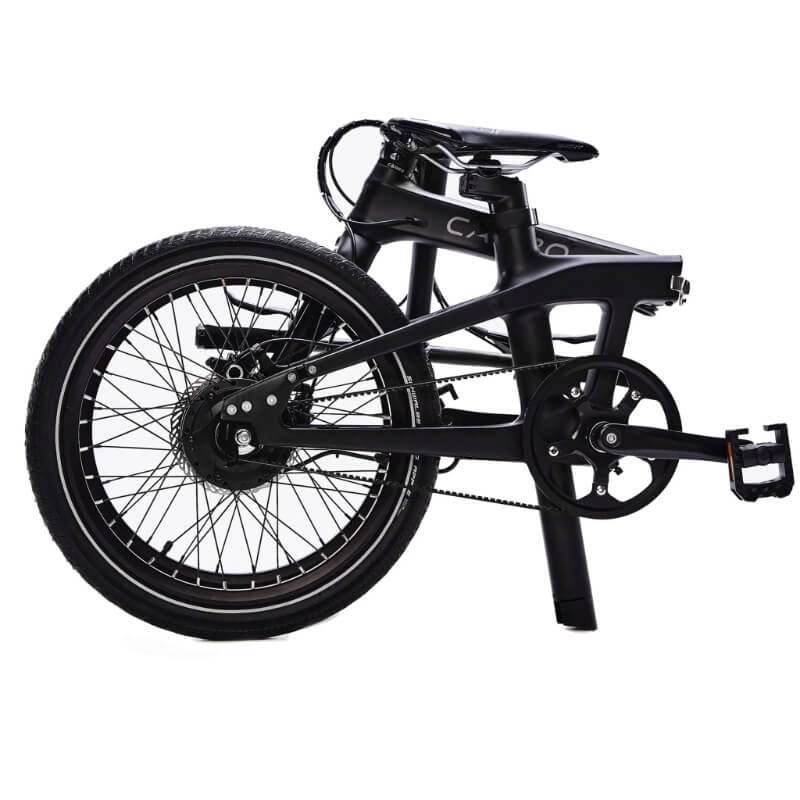

Folding Compact Design

Fast magnectic folding in three easy steps. Push the seat post down, Fold the handlebar stem, release the button and it’s done your CARBO is folded !

A Powerful High Torque Motor

A powerful 250W motor provides 32 Nm of torque for a smooth, powerful ride. Perfect for flattening your everyday hill. Need more torque ? A 350W (45Nm) upgrade is available!

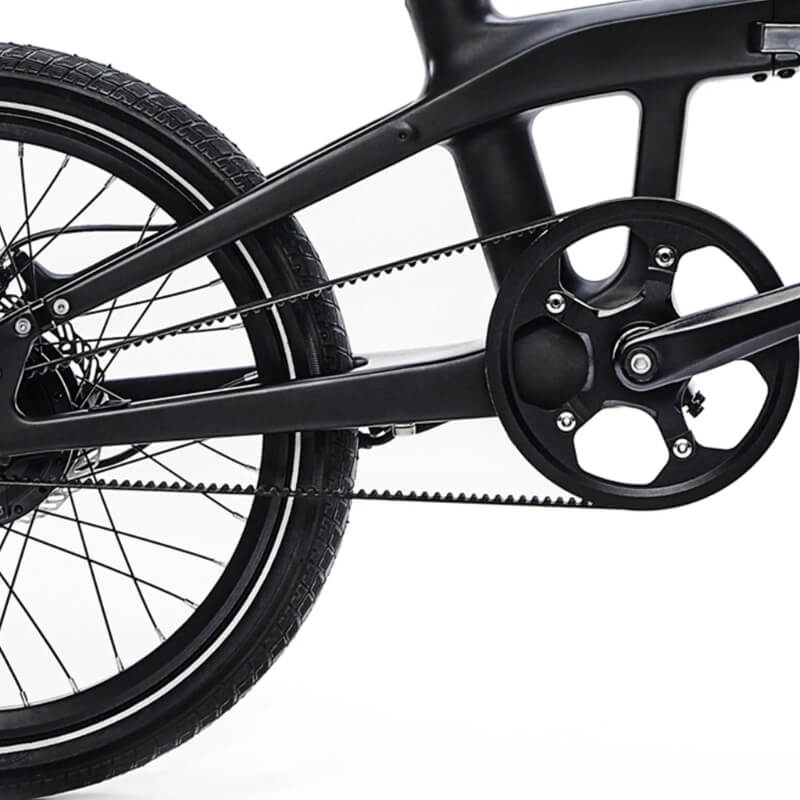

Carbon Belt Maintenance free

A maintenance free Belt drive system. Clean and slient ride, no more getting your pants dirty while riding. No maintenance, rust free.

Seat Post Battery

Removable seat post battery resulting in an optimal center of gravity and an ultimate weight distribution. CARBO is one of the most comfortable ebikes to ride.

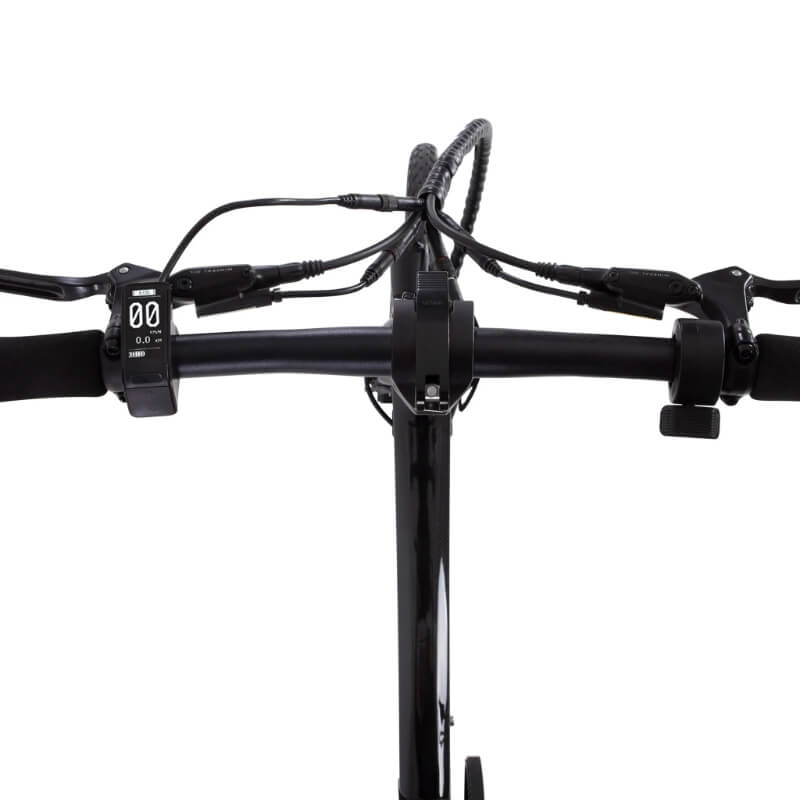

Smart Minimal Screen

A minimal screen with bluetooth connectivity. Choose between 5 levels of assist and see how far you’ve ridden. Equipped with an odometer, and a walk mode.

Multi Side Magnets

Provides compact folding and ensures your bike stays compact while folded. Carry or roll your CARBO with ease when folded.

Thru – Axle Wheel System

A secure thru axle front wheel system. Easy to install, adds security to your ride, especially at top speeds. A secure thru axle front wheel system.

Tektro Hydraulic Disc Brakes

Powerful Hydraulic braking system so you can stop with ease. Easy minimal maintenance. CARBO only uses top-of-the-line components.

Rear Light (USB powered)

Charge your smart devices on the go. The CARBO battery is equipped with a USB port so you never run out of power.

Thumb Throttle

Use your CARBO without pedaling in a full electric mode. Please check your country’s regulations before adding a throttle. Available as add-on

Schwalbe Big Apple Tires

Puncture resistant, e-bike rated air balloon technology. Cycle easily and comfortably with a full suspension effect. Air cushion tires are used as natural suspension.

Full specification

Every number, in one place.

Pulled straight from the product record — if it changes on the bench, it changes here.

Power

Motor	250W / 350W · 250W / 350W / 250W
Motor torque	-
Top assisted speed	Up to 32km/h
Pedal assist levels & throttle	Throttle: Add Throttle / No throttle
Drivetrain / gears	Transmission: Carbon belt drive / Gear Ratio: 75/22T

Battery & charging

Battery capacity	10.05-65 km range / 6.7Ah-40 km range
Range (manufacturer claim)	Up to 30-55 km of assistance depending on the level of assist
Charging time	3.5 hr
Battery removable	-

Safety

Brake system	Tektro HD-E350 Hydraulic Disc
Suspension / fork travel	Fork: Toray Carbon custom
Tyres	20" x 2.0" · Schwalbe Big Apple
Lighting	Taillight: Rear light external · Light: Front battery integrated

Dimensions & weight

Weight	13.3 kg including battery
Max total load	-
Frame size & standover	-

Design & connectivity

Frame material	Toray Premium Carbon (folding)

Certifications & compliance

BC legal class	-

Specifications are supplied by the manufacturer and can change between production runs. We update this page when we are told they have.
