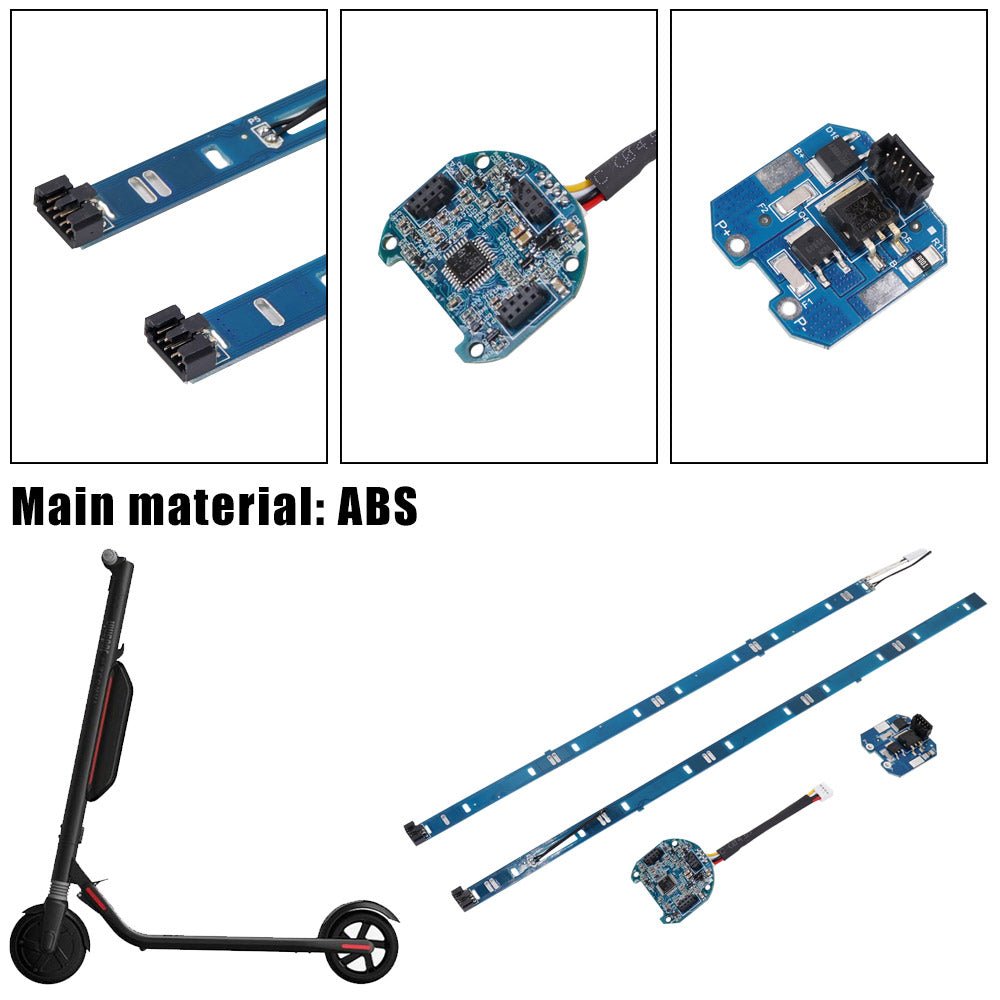

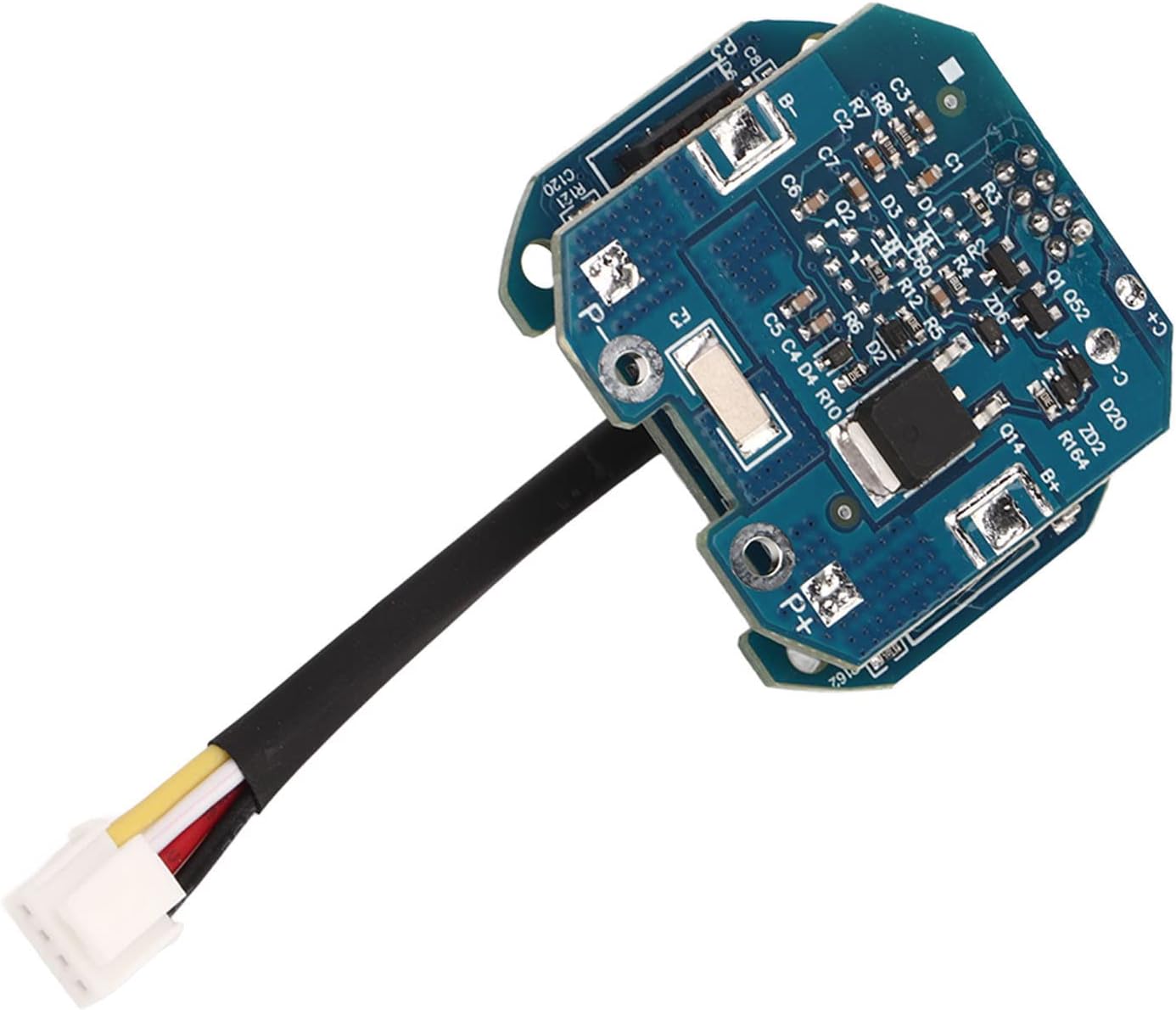

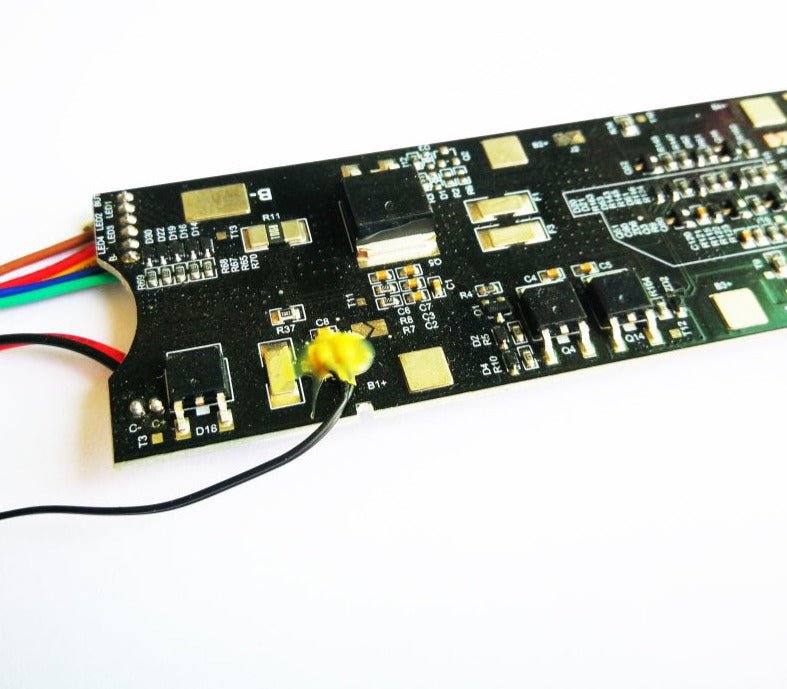

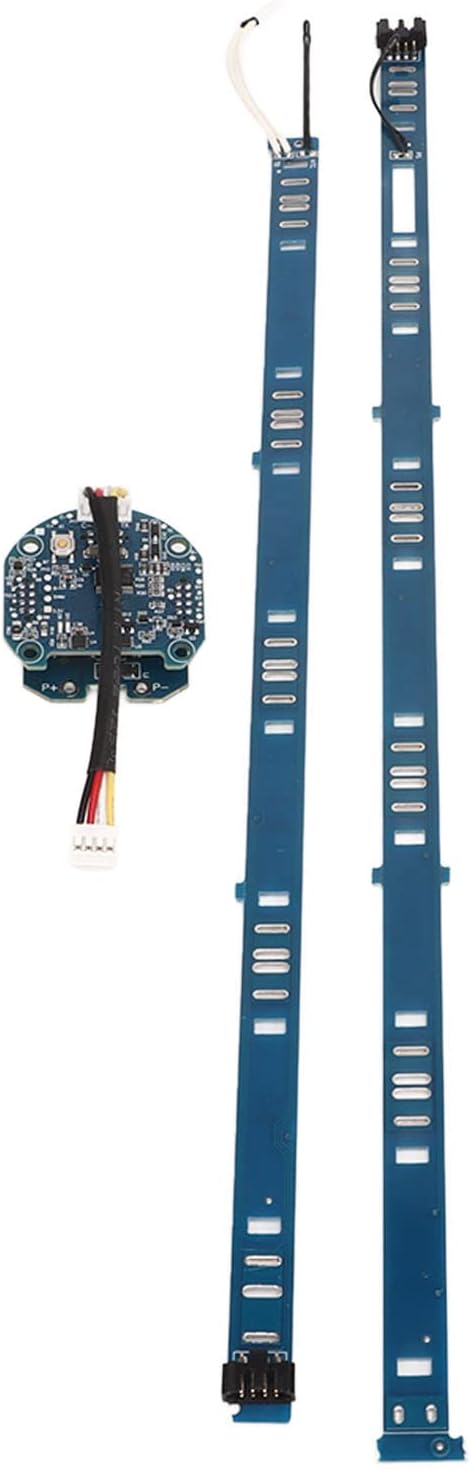

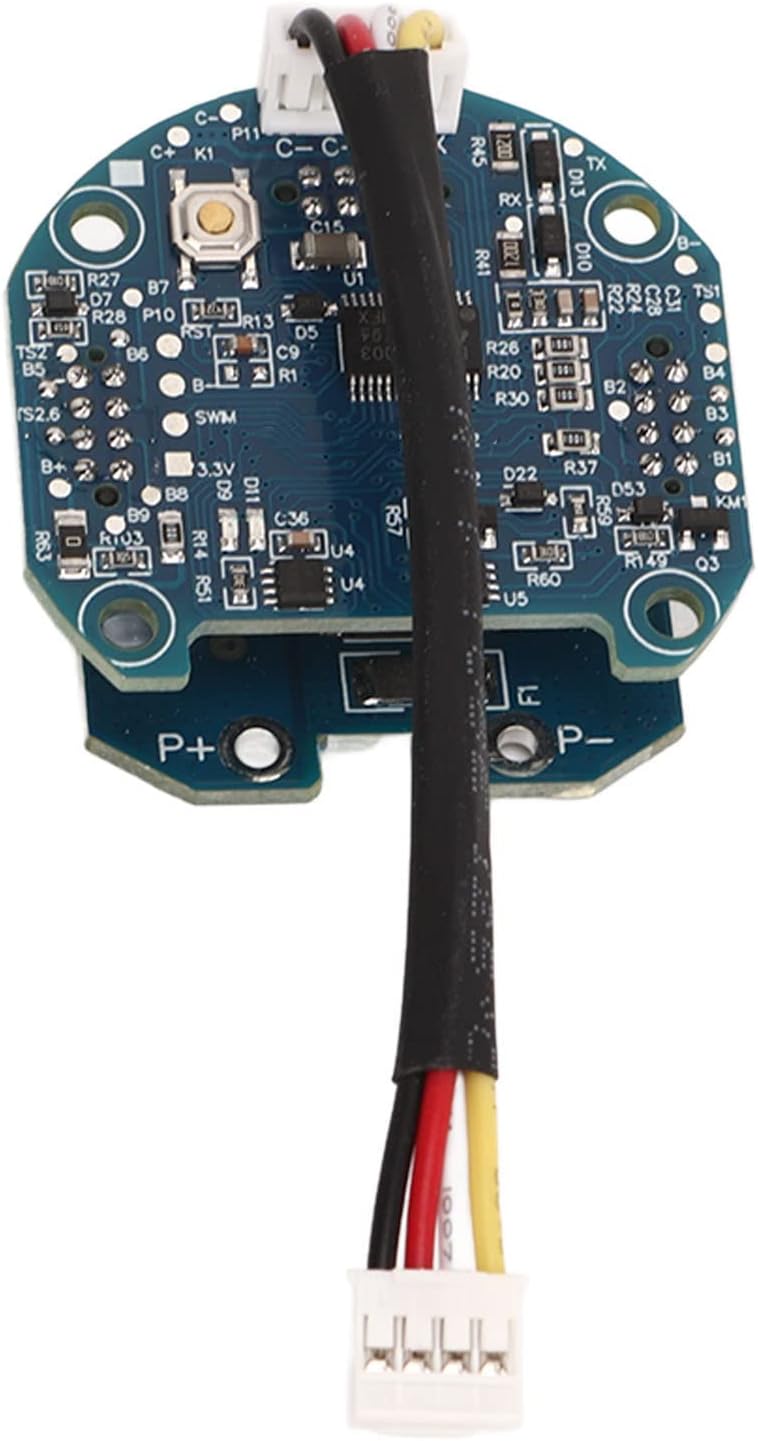

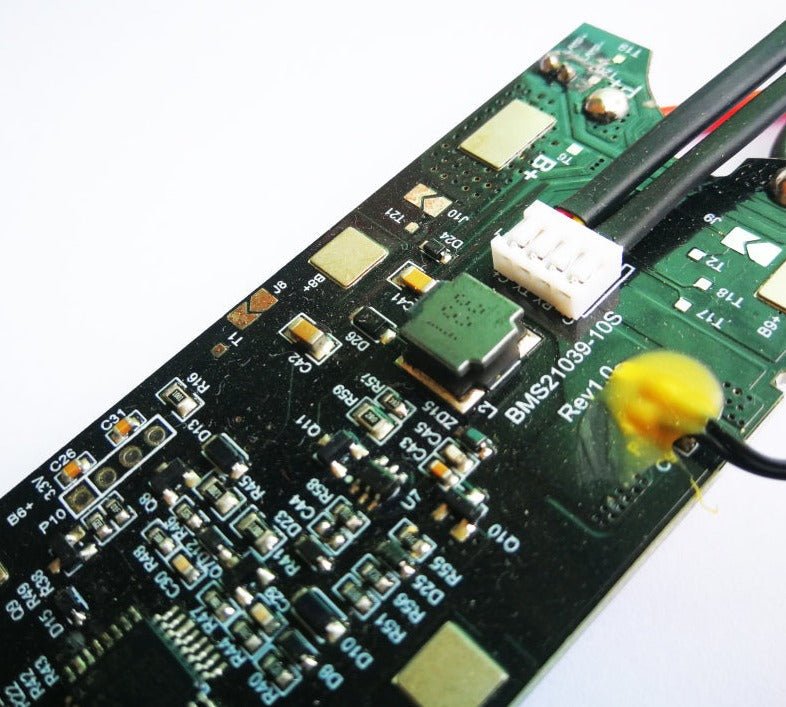

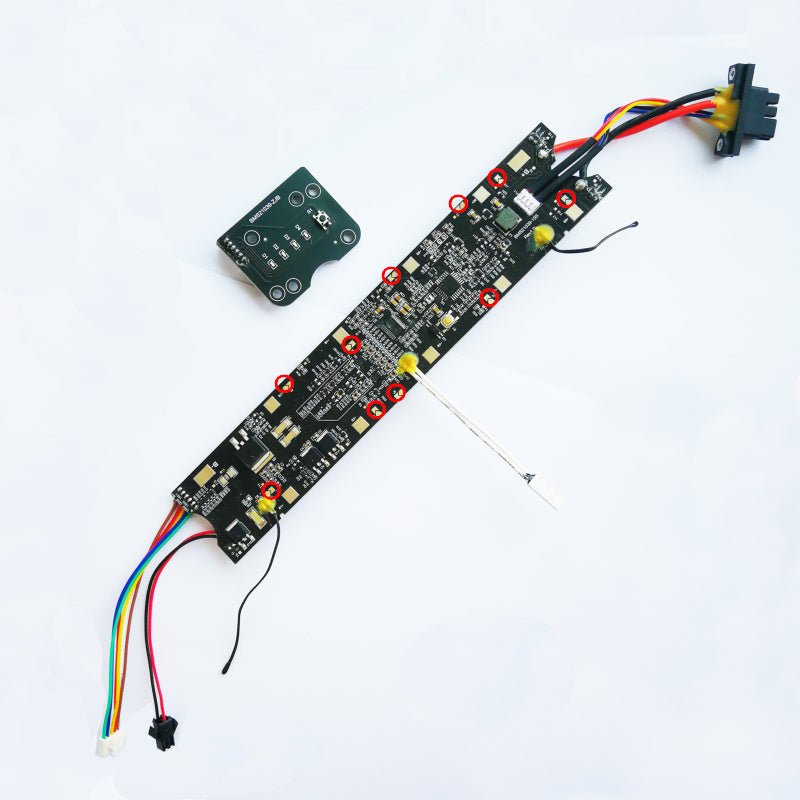

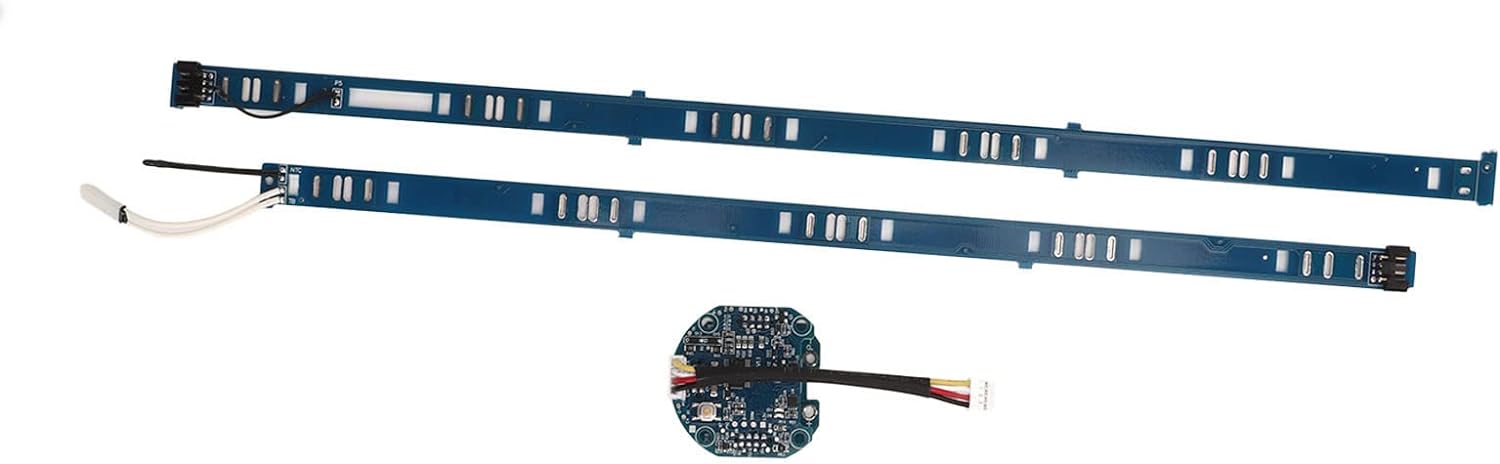

BMS for Ninebot ES Scooter External & Internal Battery

BMS for Ninebot ES Scooter External & Internal Battery

The Battery Management System (BMS) is a critical component found in both the internal and external battery packs used on Segway Ninebot ES-series scooters. It monitors battery health, protects the cells from electrical damage, and helps ensure safe charging and discharging during everyday riding.

If your Ninebot ES scooter is experiencing charging problems, battery communication issues, or sudden power loss, a faulty BMS may be preventing the battery pack from operating correctly.

What the BMS Does

The BMS acts as the safety and control system for the battery pack. It continuously monitors battery conditions and protects the cells from harmful operating conditions.

Key functions include:

• Monitoring individual cell voltages
• Balancing battery cells during charging
• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Temperature monitoring
• Communication with the scooter's controller

A properly functioning BMS helps maximize battery lifespan while maintaining safe and reliable performance.

Common Signs of a Faulty BMS

Many battery-related issues can be traced back to a damaged or malfunctioning Battery Management System.

Common symptoms include:

• Battery will not charge
• Charger immediately shows a green light
• Scooter powers off unexpectedly
• Reduced riding range
• Battery percentage fluctuates abnormally
• External battery not detected
• Error codes related to battery communication
• Scooter will not power on despite a charged battery

In many cases, replacing the BMS can restore proper battery functionality without requiring a complete battery replacement.

Compatibility Information

This BMS is compatible with battery packs used in popular Segway Ninebot ES-series scooters, including:

• Ninebot ES1
• Ninebot ES2
• Ninebot ES4

The ES4 model utilizes both an internal battery and an external battery pack, making proper BMS operation especially important for performance and range.

Installation Considerations

Replacing a BMS requires opening the battery enclosure and working directly with lithium-ion battery cells. Proper precautions should always be followed.

Before installation:

• Inspect battery cells for swelling or damage
• Verify balance wire connections
• Check battery connectors and terminals
• Inspect for signs of water intrusion
• Look for corrosion or heat damage
• Confirm connector orientation before reassembly

If battery cells show signs of deterioration, replacing the BMS alone may not fully resolve the issue.

Related Components Worth Inspecting

When servicing a Ninebot ES battery system, it is often beneficial to inspect other related components at the same time, including:

• External battery pack connections
• Battery mounting contacts
• Charging port assemblies
• Main controller assemblies
• Dashboard modules
• Wiring harnesses
• Power connectors

Addressing worn electrical components during battery repairs can improve reliability and help prevent recurring faults.
