Save $300

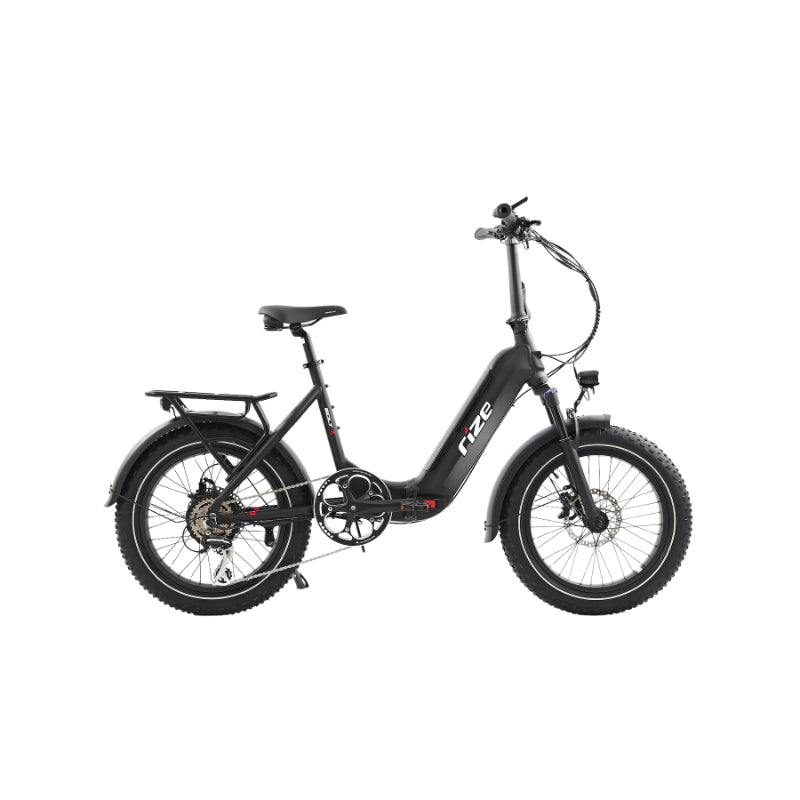

  • Black electric bike with 'naze' branding on a white background
  • Rize Bolt X Electric Bike

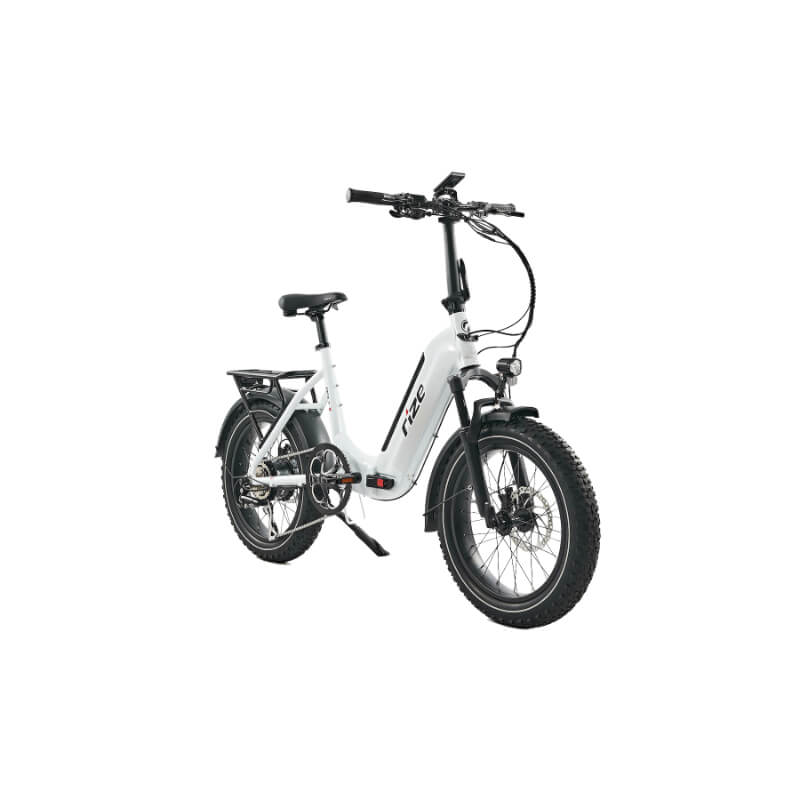

  • White electric bike on a white background

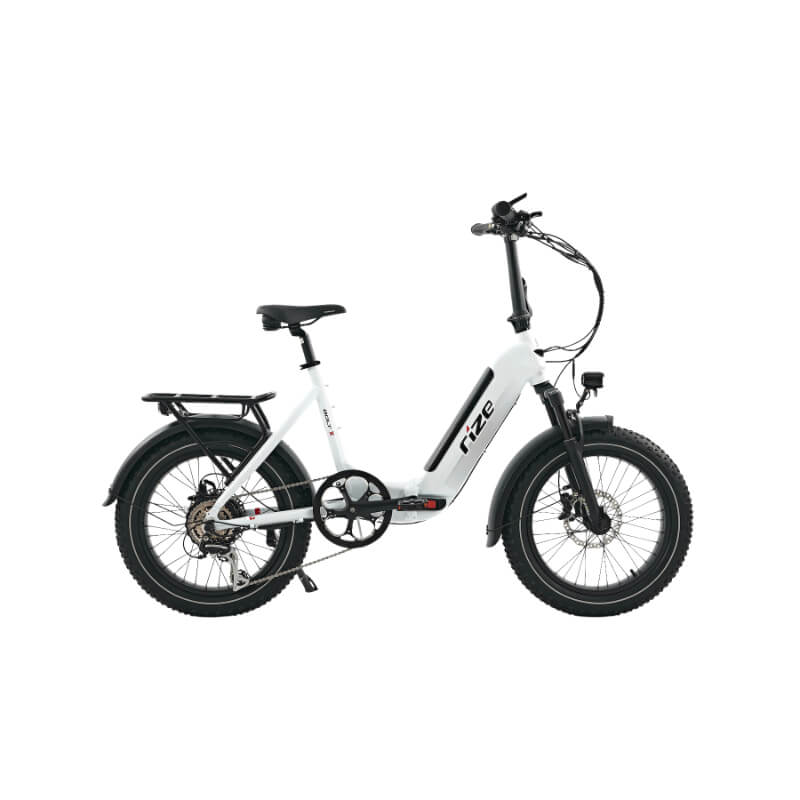

  • White electric bike with black accents on a white background
1 4
Rize

Rize Bolt X Electric Bike

Rize Bolt X Electric Bike

$2,599.00 CAD
$2,899.00 CAD $2,599.00 CAD
Sale Sold out
Shipping calculated at checkout.

The Rize Bolt X is a folding fat-tire e-bike with a 750W Bafang rear hub motor, 80 N·m torque, 48V 14Ah / 672Wh standard battery, 20 × 3.3-inch Kenda tires, front suspension and hydraulic brakes. Rize rates it for up to 45 miles (72 km), or up to 80 miles (129 km) with the optional dual-battery setup.

Need financing? Get approved in Minutes!

RBC PayPlan Or choose RBC PayPlan at checkout as an alternative payment option and apply in minutes.
Battery
Color
Assembled, tuned & safety-checked before pickup
1-year local warranty · in-house service team
Free local pickup in Vancouver, or shipping across BC

Free installation: Ask us for FREE installation when you pickup your purchased item

Shipping & Returns

In-store pickup available. Local support and e-bike service guidance are available through ProMechBC. Returns and exchanges are subject to store policy, product condition, and eligibility.

Fit & Sizing

Recommended rider height: 5'0" - 6'4". Best for riders who want easier storage, transport, and flexibility for mixed-transit or apartment living.

View full details
Bafang 500w 80Nm Motor power
Up to Primary (Up to 70km) / Primary + Secondary (Up to 120km) Range per charge
Up to 32km/h Top speed
Vancouver workshop Free local pickup — 1199 Grant St.
Why riders choose the Rize Bolt X

Rize Bolt X: 750W Folding Fat-Tire Electric Bike

A compact folding e-bike with 80 N·m Bafang power, a 672Wh standard battery, 20 × 3.3-inch tires, hydraulic brakes and optional dual-battery range.

01 Compact performance

750W BAFANG motor with up to 80 N·m torque

The Rize Bolt X uses a 750W BAFANG rear hub motor with up to 80 N·m of torque in a compact folding fat-tire platform.

  • 750 WBAFANG motor
  • 80 N·mTorque
  • Rear hubDrive layout

Motor performance varies with rider load, terrain and battery state.

750W BAFANG motor with up to 80 N·m torque
Rize Bolt X — Bafang 750W / 80 N·m
02 Battery and range

48V battery options with up to 129 km rated range

The Bolt X uses a 48V 14Ah (672Wh) standard battery rated for up to 45 miles (72 km). The optional dual-battery setup increases capacity to 48V 24Ah (1152Wh) and is rated for up to 80 miles (129 km). Standard-battery charging is approximately 5 hours.

  • 14 / 24 AhBattery options
  • 72 / 129 kmMax rated range
  • ~5 hrStandard charge

Range depends on battery configuration, assist level, speed, hills, rider load, temperature and tire pressure.

48V battery options with up to 129 km rated range
Rize Bolt X — 48V battery options
03 Braking and traction

Hydraulic disc brakes with 20 × 3.3-inch tires

Dual-piston hydraulic disc brakes with 160 mm rotors work with 20 × 3.3-inch tires for confident braking and compact fat-tire traction.

  • 160 mmHydraulic rotors
  • 20 × 3.3 inTires
  • Dual-pistonBrake calipers

Stopping distance still depends on tire grip, pad condition and road surface.

Hydraulic disc brakes with 20 × 3.3-inch tires
Rize Bolt X Electric Bike — Dual Piston Hydraulic Brakes 160mm
04 Storage and carrying

Folding fat-tire frame at about 70 lb

Rize lists the Bolt X at about 70 lb with a 275 lb maximum rider load. The folding frame reduces storage size, but it remains a substantial two-handed lift.

  • 70 lbApprox. weight
  • 275 lbMax load
  • FoldableFrame

Folding helps storage, not lifting weight; test the carry if stairs are part of daily use.

05 Drivetrain

Shimano 7-speed gearing for city and recreational riding

A Shimano 7-speed drivetrain works with pedal assist and throttle control to give the Bolt X useful gearing for city riding and mixed terrain.

  • 7-speedShimano drivetrain
  • Pedal assistElectric support
  • ThrottleControl

Mechanical gear selection remains important for comfortable climbing and drivetrain efficiency.

Rize Bolt X Electric Bike

The Rize Bolt X is a folding step-through fat-tire e-bike for riders who need compact storage without dropping to a low-power commuter platform. The current Bolt X uses a 750W Bafang rear hub motor with 80 N·m of torque and a 48V 14Ah Samsung 21700 battery.

Standard and dual-battery range

The 672Wh standard battery is rated for up to 45 miles (72 km) of assisted riding. Rize’s optional dual-battery configuration increases total capacity to 48V 24Ah / 1152Wh and is rated for up to 80 miles (129 km) under favourable conditions.

Folding frame with 20 × 3.3-inch tires

20 × 3.3-inch Kenda K-Shield tires provide more volume than a conventional folding commuter tire. The Bolt X also includes front suspension with adjustable lockout, dual-piston hydraulic disc brakes with 160 mm rotors, Shimano 7-speed gearing and a thumb throttle. Rize lists 20 mph (32 km/h) as the default speed and up to 28 mph (45 km/h) when unlocked, where permitted.

Browse the Rize collection or compare more electric bikes. ProMechBC supports owners with e-bike repair in Vancouver and e-bike parts.

Real-world range

How far it actually goes.

One number would be easier to print and harder to trust. Here is what the manufacturer claims, and what actually changes it.

70–120 km Manufacturer claim, ideal conditions
Full specification

Every number, in one place.

Pulled straight from the product record — if it changes on the bench, it changes here.

Power
MotorBafang 750W motor
Motor torque80 N·m
Top assisted speed20 mph (32 km/h) default / 28 mph (45 km/h) unlocked
Pedal assist levels & throttle-
Drivetrain / gearsShimano Rapid Fire 7-speed
Pedal Assist & Throttle Cadence-sensor pedal assist; 3/5/7/9 levels; throttle on demand
Battery & charging
Battery capacity48V 14Ah (672Wh) primary / 48V 24Ah (1152Wh) dual
Range (manufacturer claim)Up to 72 km (45 mi) / 129 km (80 mi) with Dual Battery
Charging time5 hours
Battery removable-
Safety
Brake systemDual-piston hydraulic disc brakes, 160 mm
Suspension / fork travel-
Tyres20 × 3.3 in Kenda tires with K-Shield puncture protection
Lighting-
Front Suspension Suspension fork with adjustable lockout
Dimensions & weight
Weight31.8 kg (70 lb)
Max total load124.7 kg (275 lb)
Frame size & standover-
Recommended Rider Height 5 ft 0 in–6 ft 4 in
Design & connectivity
Frame material6061 aluminum alloy
Certifications & compliance
BC legal class-

Specifications are supplied by the manufacturer and can change between production runs. We update this page when we are told they have.

Legal & compliance

Where you can ride it.

BC’s rules in plain language, so you can plan your rides.

Road legal Road legal in BC — ride it anywhere a bike goes500 W and 32 km/h — inside BC's 500 W / 32 km/h limits for a standard e-bike. Bike lanes, paths and city streets, with no licence, plate or insurance.
  • 32 km/h Top speed as supplied
  • 500 W Continuous motor output
  • Standard e-bike BC classification
  • 16+ Minimum rider age

Before you head out

  • No licence, plate or insurance Not required

    Nothing to register, insure or renew.

  • Goes where bicycles go Good to know

    Anywhere a bicycle goes, subject to local bylaws.

  • Helmet, every ride Required

    An approved helmet, every rider, every age.

  • Riders 16 and over Required

    BC sets 16 as the minimum on public roads.

  • Keep the pedals on Good to know

    The pedals have to work — that is what makes it a bike.

  • Leave the limiter alone Good to know

    As delivered it is compliant; derestricting it is not.
