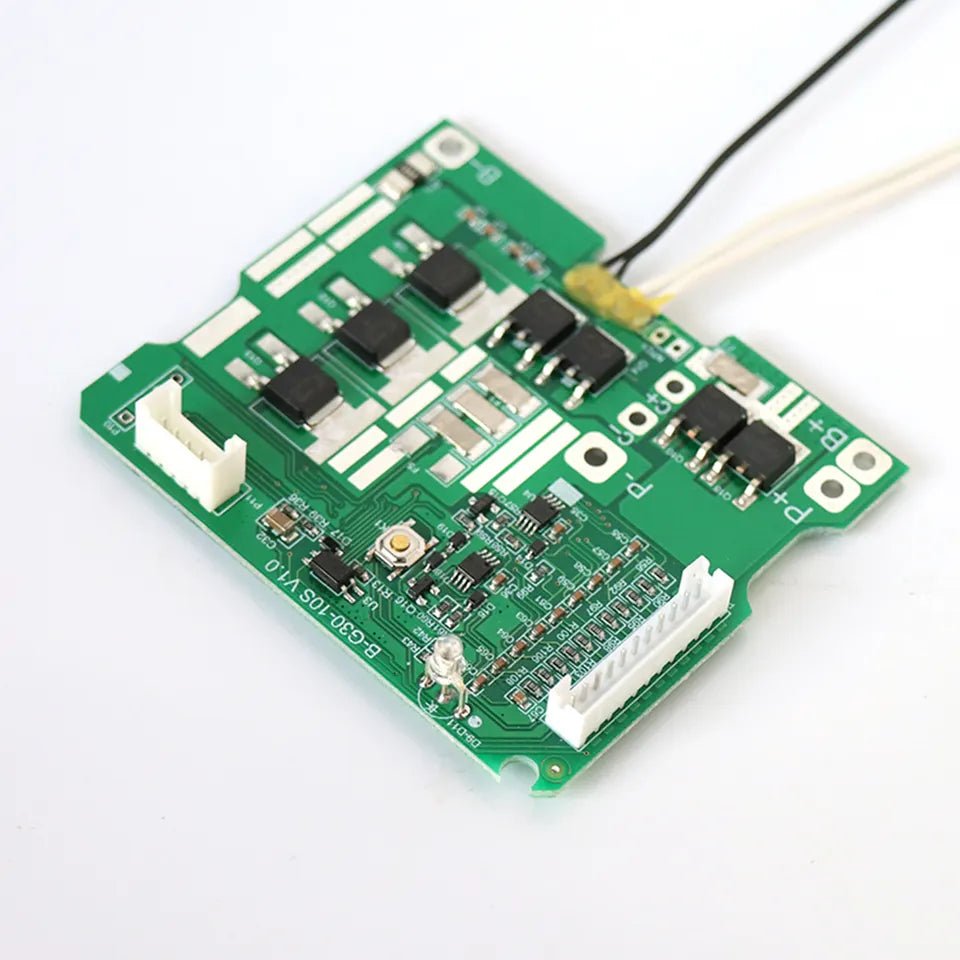

BMS for Ninebot Max G30 Battery Pack

BMS for Ninebot MAX G30 Battery Pack

The Battery Management System (BMS) is a critical component inside the Segway Ninebot MAX G30 battery pack. It is responsible for monitoring battery health, balancing cell voltages, protecting against electrical faults, and ensuring safe charging and discharging operation.

If your MAX G30 battery is no longer charging properly, shutting down unexpectedly, or displaying battery-related errors, a faulty BMS may be the underlying cause.

What the BMS Does

The BMS serves as the protection and monitoring system for the battery pack. It continuously tracks battery performance and prevents conditions that could damage the cells.

Key functions include:

• Cell voltage monitoring
• Battery balancing
• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Temperature monitoring
• Communication with the scooter's controller

Without a properly functioning BMS, the battery pack cannot safely deliver power to the scooter.

Common Signs of a Faulty BMS

Battery-related issues are not always caused by damaged cells. In many cases, the BMS itself may be responsible.

Common symptoms include:

• Battery will not charge
• Charger shows green immediately after plugging in
• Scooter powers off unexpectedly
• Reduced riding range
• Battery percentage fluctuates abnormally
• Battery pack not detected by the scooter
• Error codes related to battery communication
• Scooter will not power on despite a charged battery

Diagnosing the BMS correctly can often save the expense of replacing an entire battery pack.

Compatibility Information

This BMS is designed for use with the:

• Segway Ninebot MAX G30

Before ordering, verify that your battery pack version matches the BMS specifications and connector layout.

Installation Considerations

Replacing a battery management system requires working directly with high-capacity lithium-ion battery packs. Proper precautions should always be followed during installation.

Before replacing the BMS:

• Disconnect all power sources
• Inspect battery cells for swelling or damage
• Check balance leads and connectors
• Verify wiring orientation before reconnecting
• Inspect the battery enclosure for signs of water intrusion

If the battery has experienced severe water damage, overheating, or physical impact, additional repairs may be necessary beyond replacing the BMS.

Related Components Worth Inspecting

When servicing a MAX G30 battery system, it is often beneficial to inspect related electrical components, including:

• Battery pack wiring
• Charging port assemblies
• Controller assemblies
• Main wiring harnesses
• Dashboard communication circuits
• Battery connectors and terminals

Addressing these components during battery repairs can help improve reliability and prevent repeat failures.
