Switch panel assembly/ Dashboard for Max G30

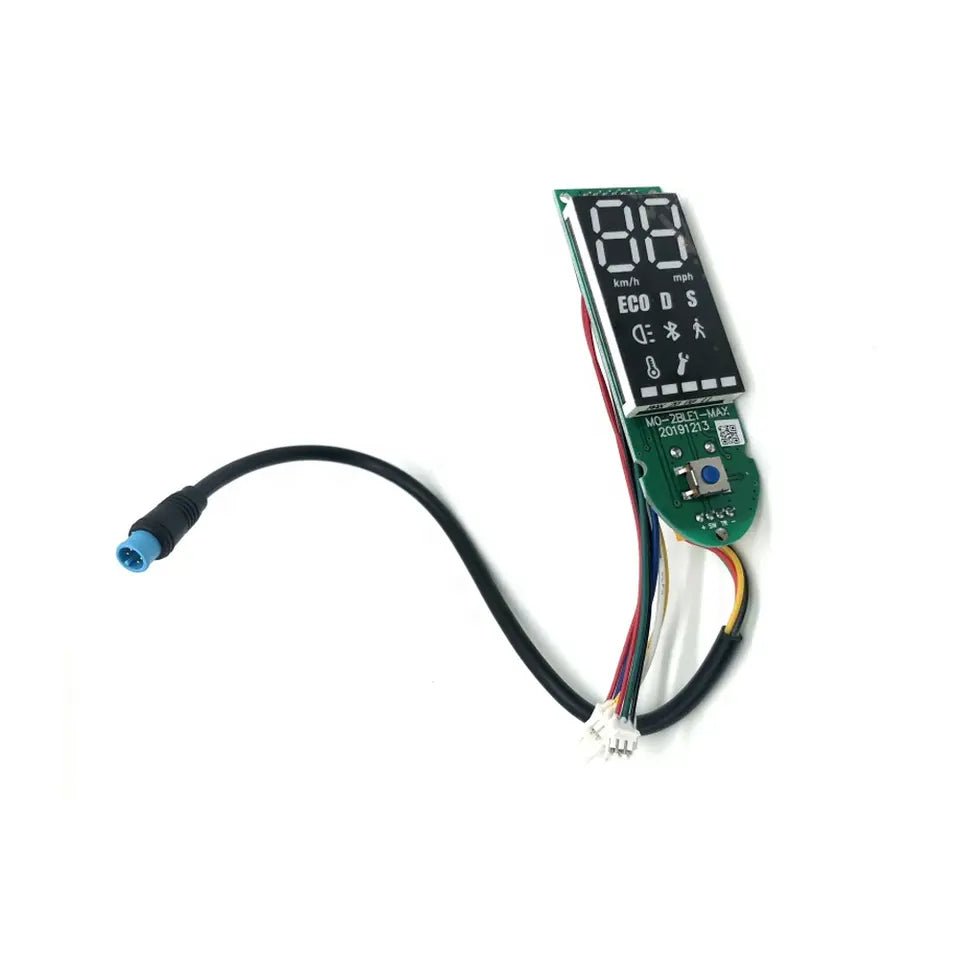

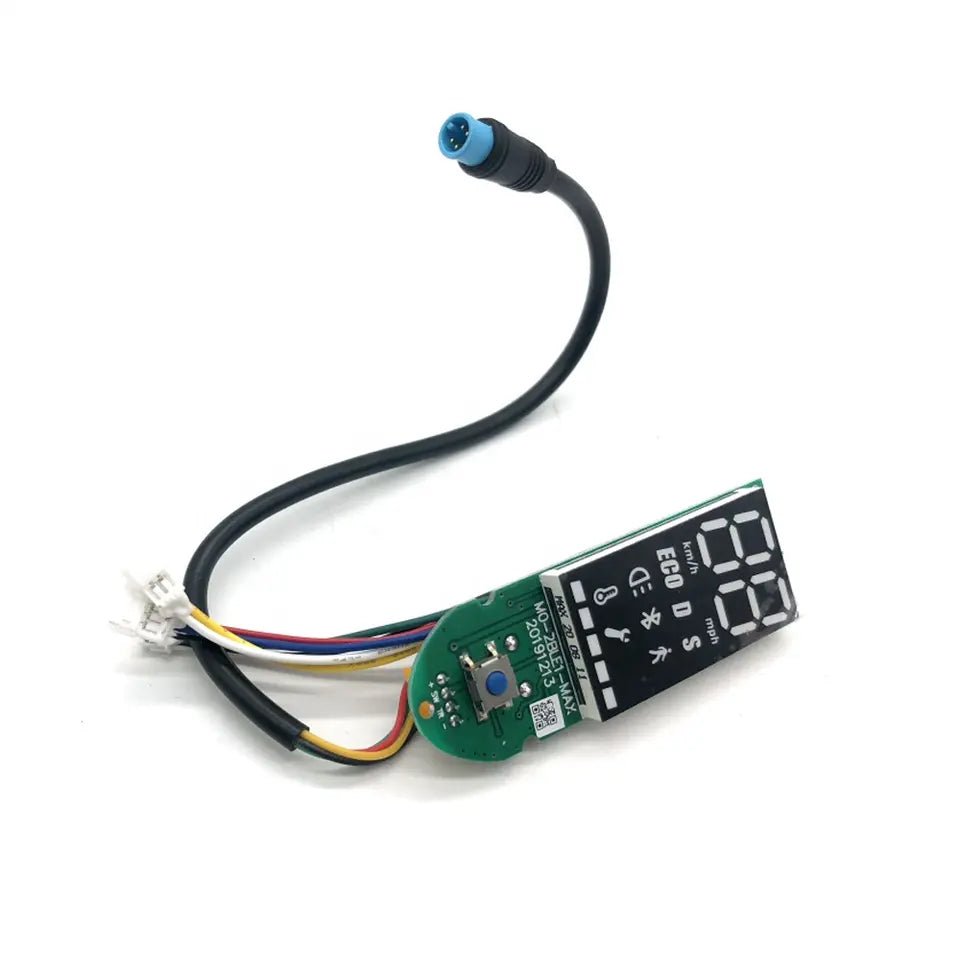

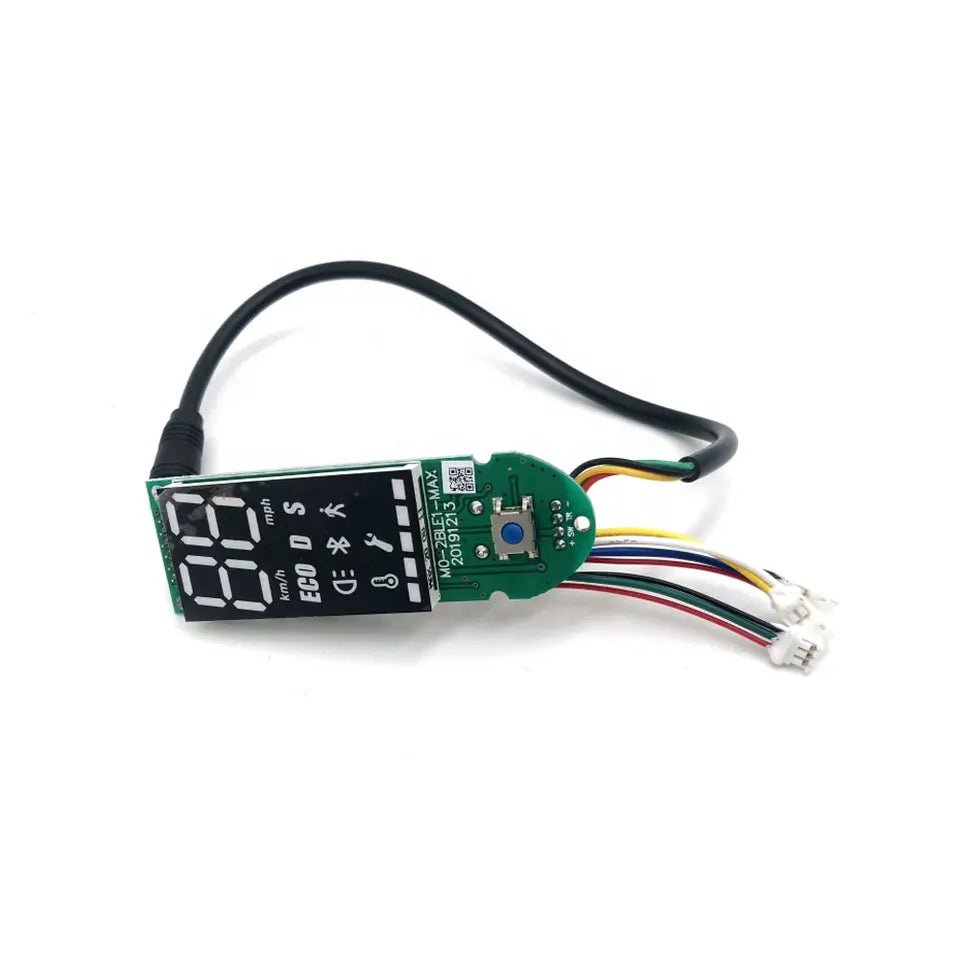

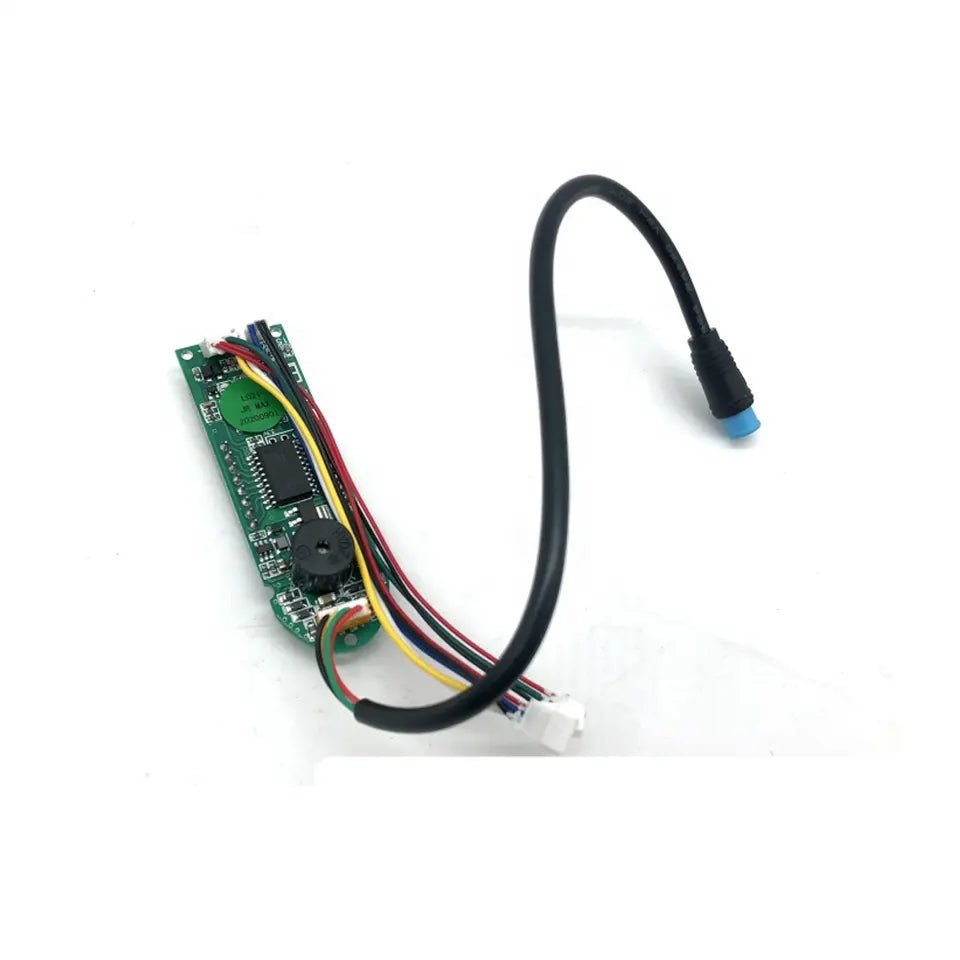

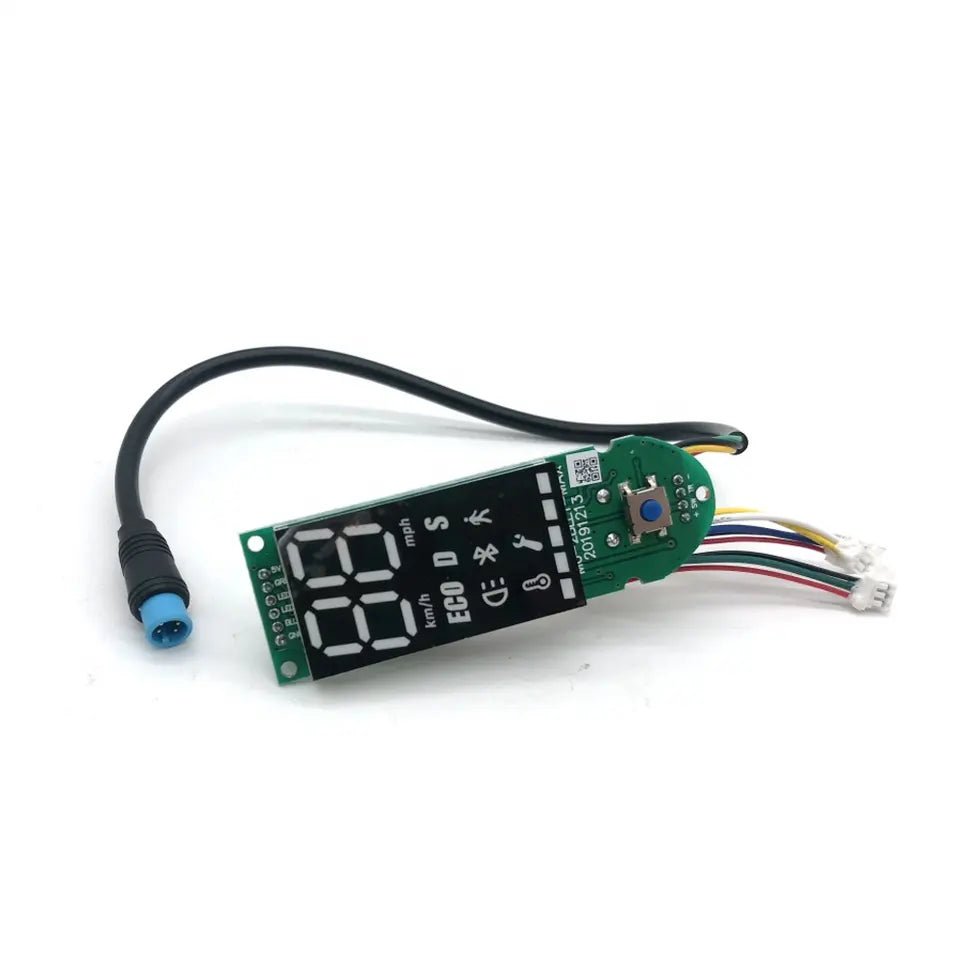

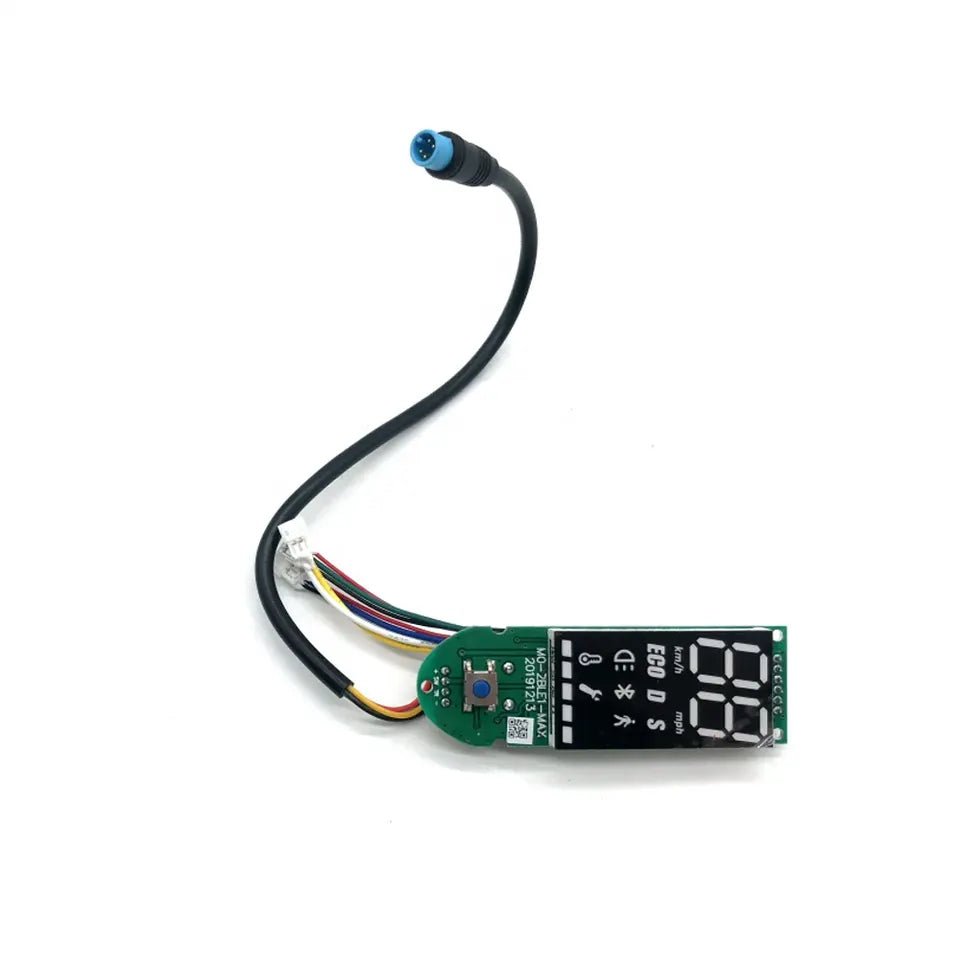

Switch Panel Assembly / Dashboard for Segway Ninebot MAX G30

The dashboard, also known as the switch panel assembly, is one of the most important electronic components on a Segway Ninebot MAX G30. It serves as the primary interface between the rider and the scooter, displaying ride information while allowing access to essential controls such as power, riding modes, and Bluetooth connectivity.

If your MAX G30 display has become damaged, unresponsive, or is no longer communicating properly with the controller, replacing the dashboard assembly can restore normal functionality and improve reliability.

What the Dashboard Does

The dashboard assembly performs several critical functions, including:

• Powering the scooter on and off
• Displaying speed and battery status
• Indicating riding modes
• Managing Bluetooth connectivity
• Communicating with the controller
• Displaying system warnings and error codes

Because the dashboard acts as a communication hub within the scooter's electrical system, even minor failures can affect overall performance.

Common Signs of a Faulty Dashboard

A damaged or failing switch panel assembly may cause a variety of issues, including:

• Scooter will not power on
• Blank or flickering display
• Incorrect speed or battery readings
• Power button not responding
• Bluetooth connection problems
• Random shutdowns
• Error codes appearing unexpectedly
• Loss of communication between dashboard and controller

Water intrusion, impact damage, corrosion, and worn connectors are among the most common causes of dashboard failure on commuter scooters.

Compatibility Information

This dashboard assembly is designed for the:

• Segway Ninebot MAX G30

If you own a MAX G30, you may also be interested in parts and accessories compatible with the Segway Ninebot MAX G30.

Installation Considerations

Replacing the dashboard assembly is generally straightforward but requires careful handling of the scooter's wiring and connectors.

During installation, we recommend:

• Disconnecting power before beginning repairs
• Inspecting dashboard connectors for corrosion
• Checking the wiring harness for damage
• Verifying waterproof seals and gaskets are intact
• Ensuring all connectors are fully seated before reassembly

A poor connection between the dashboard and controller can create symptoms similar to a faulty display, so it is important to inspect the entire communication circuit during troubleshooting.

Related Components Worth Inspecting

When replacing a MAX G30 dashboard, it is often a good idea to inspect other electrical components that commonly work alongside it, including:

• Controller assemblies
• Main wiring harnesses
• Power button components
• Battery connections
• Charging port assemblies
• Motor cable connections

Addressing worn or damaged supporting components at the same time can help prevent future electrical issues.
